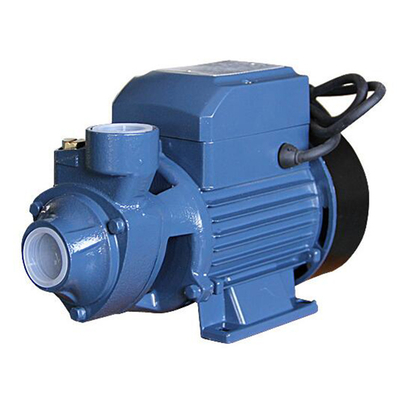

High quality More Efficient Impeller Peripheral Water Pump
QB vortex pump series are qualified in domestic fittings, to increase the distribution by small autoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non-aggressive liquid only, without sand or other solid impurity. QB series are suitable for domestic applications, such as supply water from well, pool etc. It is also suitable for water pressure boosting gardening and automatic Water supplying system if composed with other appliances.
Working Conditions:
Max. Medium temperature up to +40°C
Max. Ambient temperature up to +40°C
Medium free from granules or anything that may damage the pump
Total suction lift up to 9mt
Continuous duty
Technical Parameters
MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | |
(kw) | (hp) | (l/min) | (m) | (m) | (Inch) | |
QB60 | 0.37 | 0.5 | 35 | 35 | 9 | 1" X 1" |
QB70 | 0.55 | 0.75 | 45 | 50 | 9 | 1" X 1" |
QB80 | 0.75 | 1 | 50 | 55 | 9 | 1" X 1" |
For more detailed specifications please feel free to contact with us
